Decorator pattern

By Khanh Pham

Intent

  • Attaches additional responsibilities to an object dynamically and transparently.

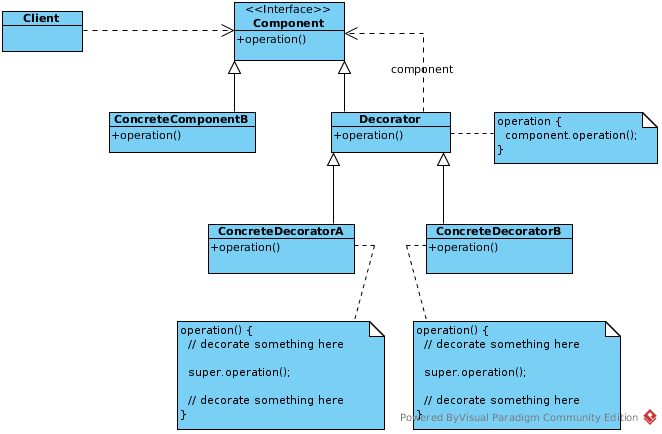

Structure

decorator-pattern-structure

  • The Decorator can also be an interface or abstract class.
  • The Decorator conforms to the interface of its decorated Component to make it transparent to the clients of the Component.
  • The Decorator keeps a reference to its decorated Component, so that it can attach additional responsibilities to the object at run-time.
  • The Decorator does not alter the behaviors of its decorated object, but instead it attaches other behaviors to the object. In other words, the Decorator changes the /skin/ of an object, not its /guts/.

Applicability

This pattern can be used when:

  • You want to add new behaviors to before or after performing an operation of the decorated object.
  • You want to introduce new behaviors but for some reasons you don’t want to do that with inheritance.

Risks

  • Because the decorator extends its decorated type, it might be expensive to introduce new decorators if the decorated type is heavy-weight.
  • Even thought the decorator extends its decorated type, the developers must be aware that the decorator does /not/ actually belong to the type hierarchy.

References

  • Decorator, GOF book
